Before and After Guide: SSO for Split Admins

The work in this guide must be completed and tested before your migration date.

No RBAC-Related Work

The migration process will assign the appropriate role-based access control settings to users and objects for you. Please disregard any mention of assigning roles to users in the Harness SSO documentation.

What is Needed

For a New Harness Account

If you are migrating into a new Harness account, you will create a new SSO configuration for Harness that is identical to your current Split configuration. If you use SCIM, there is one exception to this rule: your Split Administrators will be in a new, differently named group. In the end, your goal is to ensure that you grant access to the FME module in app.harness.io for the same users and groups that exist in app.split.io today.

For an Existing Harness Account

If you are migrating into an existing Harness account, your tasks are limited to assigning current Split users access to the Harness application and (if using SCIM) assigning Split-related groups to Harness as well.

• For SSO-only configurations: grant access to Harness for your existing Split users. The migration takes care of the rest.
• For SSO with SCIM configurations: perform the steps beginning with Create, Populate, and Push the All FME Admins Group below for Okta or Entra ID.

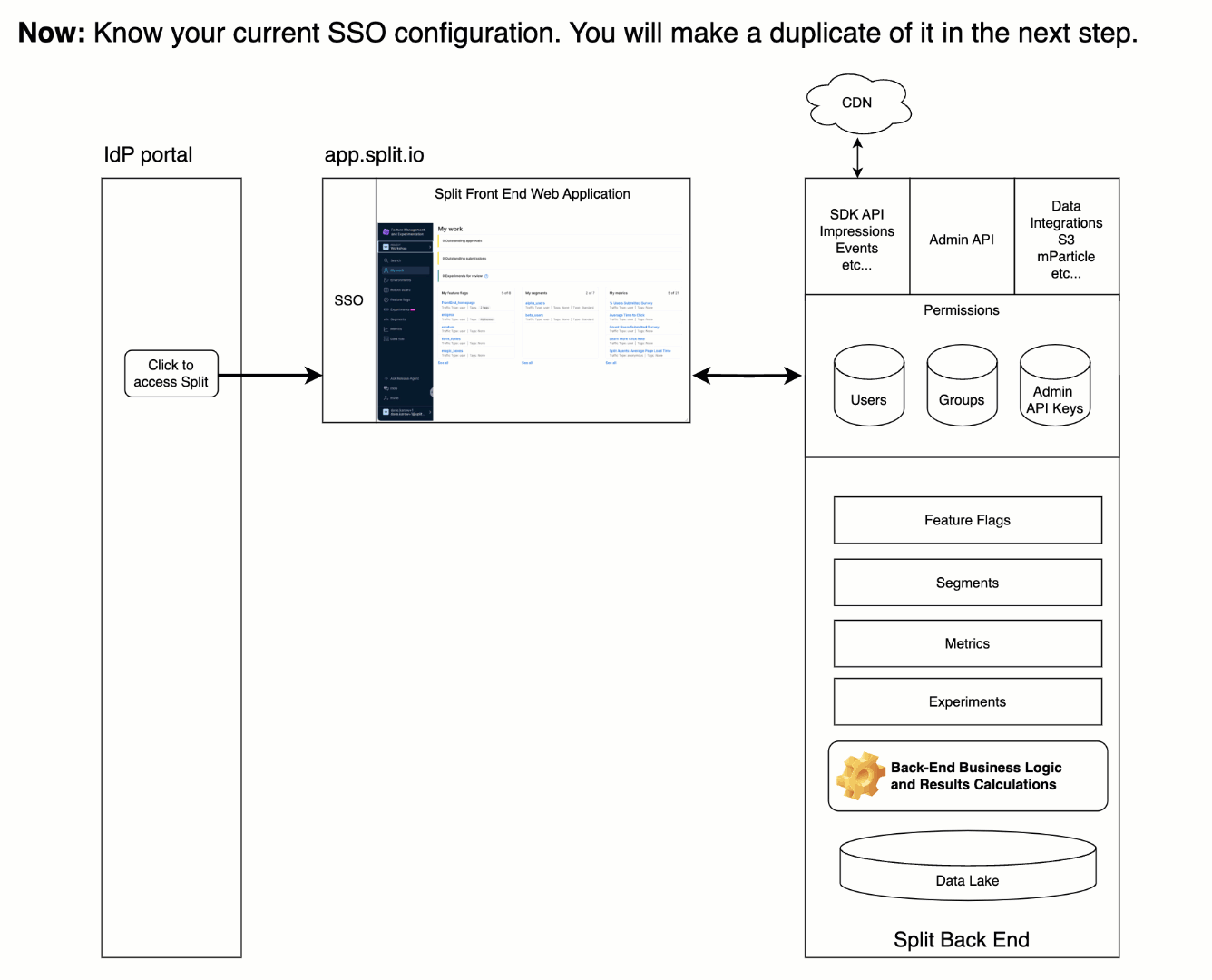

Before and After

Please watch the 30-second animation below.  Note the order of steps and the way your users will access the application over time.

Tasks To Perform

If Your Split Account Uses SSO Only

1. Add a new SSO application for app.harness.io to your IdP. See Configure SSO below.
2. Assign all of your current Split users to the SSO application for app.harness.io.
3. Notify your Harness CSM or support@split.io when the SSO steps are complete.

If Your Split Account Uses SSO + SCIM

1. Add a new SSO application for app.harness.io to your IdP. See Configure SSO below.
2. Configure SCIM to provision users and groups in app.harness.io. See Configure SCIM below.
3. Notify your Harness CSM or support@split.io when the SSO and SCIM steps are complete.

Configure SSO

[SSO with Okta] [SSO with Microsoft Entra ID] [SSO with Other]

SSO with Okta

Please follow the directions and tips below instead of using web search to jump into the Harness docs.

1. Start here: Create app integration in Okta (opens a new tab).
2. Keep the tips below handy as you go through the steps.
3. Perform all steps up to and including: Enable and test SSO with Okta.
4. Do not perform the last step: SAML authorization with Okta.

Tips

For the steps in Create app integration in Okta:

• Step 8: In the Name ID format, select EmailAddress. Do not leave it as Unspecified.
• Step 9: For the Application username, accept default of Okta username
• Step 10: Skip the Attribute Statements step
• Step 11: Skip the Group Attribute Statements step

For the steps in Okta SAML metadata file

• Identity Provider metadata XML: In Split, this XML was entered via copy/paste.
  • In Harness you will download and upload a file.
  • The instructions in the Harness documentation above are straight-forward, and include a screenshot to help you find the download operation: Okta SAML metadata file.

For the steps in SAML Authorization with Okta

• Do not perform any of the steps in SAML Authorization with Okta.
  • Group linking is not possible without SCIM in Split, so there is no reason to configure SAML Authorization in Harness as part of your migration.
  • Please do not attempt to configure this setting prior to migrating from Split to Harness. Contact your Harness representative or support@split.io if you have questions.

FAQs

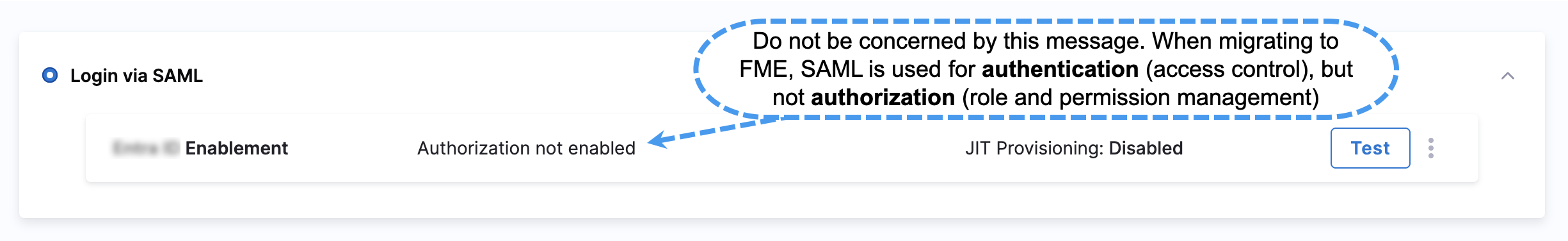

Q: I see "Authorization not enabled" in Account Settings > Authentication > Login via SAML. Have I missed a step?

A: This is expected, and OK. When migrating to FME, SAML is used for authentication (access control), but not authorization (role and permission management).

Q: Should I create a SAML app in Okta as the Harness documentation states, or use the pre-built Okta Integration Network (OIN) app for Harness?

A: Create the SAML app on Okta as shown above. The OIN Harness app is not recommended.

SSO with Microsoft Entra ID

Please follow the specific instructions below, rather than referencing the Harness docs.

These instructions reference the entra.microsoft.com portal, also known as the “The new Microsoft Entra admin center" -- if you are using an older interface, please either adopt the instructions below or reach out to support@split.io for guidance.

Start in Entra Admin

1. In the left navigation, expand Applications and choose Enterprise Applications
2. Click on + New Application
3. Type "Harness" in the search box.
4. Click on the Harness tile. A dialog appears on the right.
5. Edit the default name of “Harness” if you prefer, to add detail (optional)
6. Click Create in the dialog. The application is created and screen refreshes to show Overview
7. Click Single Sign-on under Manage
8. Select SAML. The Set up Single Sign-On with SAML screen appears
9. Click Edit in box number (1). The Basic SAML Configuration dialog appears.
10. The Identifier (Entity ID) should already be populated with "app.harness.io" (add it if not).
11. Leaving this dialog open, switch to another tab open to your Harness account

Continue to Your Harness Account

1. Choose Account Settings
2. Scroll down to Security and Governance
3. Choose Authentication
4. Scroll down and click + SAML Provider
5. The Add SAML Provider dialog appears
6. Give it a descriptive name, such as “Entra ID SSO" or "Entra ID SSO for Migrated Split”
7. Click the Azure button
8. Copy the ACS URL that is provided in the first field.

Return to Entra Admin

1. In Entra ID, click the add reply URL link and paste the ACS URL you just copied from Harness into the field that appears.
2. Click Save
3. Close the Basic SAML Configuration dialog by clicking the x top right.
4. You are prompted to test the single sign-on connection. Click No, I'll test later.
5. Scroll down to box (2) Attributes & Claims, click Edit.
6. Click on the Unique User Identifier (Name ID) entry. The Manage claim screen appears.
7. Confirm these fields have these settings:
   • Name identifier format: Email address
   • Source: Attribute
   • Source attribute: user.userprincipalname
8. Edit above fields if needed to match (it should be correct by default)
9. Click Save if you made changes.
10. Click the “X” top right to exit the Manage claim screen
11. Click the “X” top right to exit the Attributes & Claims screen. You are back on the SAML-based Sign-on screen.
12. Scroll down to box (3), SAML Certificates
13. Find the Federated Metadata XML line and click Download.
14. Confirm that you have a new file in your downloads folder named Harness.xml. If you have repeated this step, please be sure you know which file is the most recent. In that case, the file may have a name such as Harness (1).xml.

Return to Your Harness Account

You should still be on the Add SAML Provider dialog

1. Click Choose a file where it says: Upload the Identity Provider metadata XML downloaded from your app
2. Browse to the Harness.xml file you downloaded from Entra ID.
3. Uncheck the Enable Authorization box.  Unsure why? Please read this.
4. Scroll down and click the Add button.

Test the configuration

Follow the steps under Enable and test SSO with Azure in the Harness documentation.

Tips

SAML Authorization with Azure:

• Do not perform any of the steps in SAML Authorization with Azure.
  • Group linking is not possible without SCIM in Split, so there is no reason to configure SAML Authorization in Harness as part of your migration.
  • Please do not attempt to configure this setting prior to migrating from Split to Harness. Contact your Harness representative or support@split.io if you have questions.

FAQs

Q: I see "Authorization not enabled" in Account Settings > Authentication > Login via SAML. Have I missed a step?

A: This is expected, and OK. When migrating to FME, SAML is used for authentication (access control), but not authorization (role and permission management).

Configure SCIM

[SCIM with Okta] [SCIM with Microsoft Entra ID ] [SCIM with Other]

SCIM with Okta

Create a Service Account, API Key and Token

• You will need a Harness API key and unexpired token that has all Users and User Groups permissions.
• We recommend using an API key associated with a service account
• Make sure the service account has all Users and User Groups permissions.
• Save the token for use in the next step below.

Revisit Okta SSO Settings to Add and Authorize SCIM

In the SSO section above, you configured an Okta application for Harness. Now, we will revisit that configuration and add SCIM to it.

Start by opening Create an Okta app integration in the Harness Documentation (opens in a new tab).

1. Skip ahead to Step 11: In your newly created app, select the General tab, and then under App Settings, select Edit.
2. Perform Steps 11 and 12.
3. Continue to the Authorize the Okta integration procedure below Step 12.
4. Copy YOUR_ACCOUNT_ID from the URL of any page in your Harness account.
5. When prompted to enter userName as the unique identifier, please enter email instead. While in most configurations, userName and email are the same, we want to avoid the risk of introducing a change between your Split unique identifier (which is email) and the Harness unique identifier.
6. Complete the remaining steps in Authorize the Okta integration using the API key token created above.

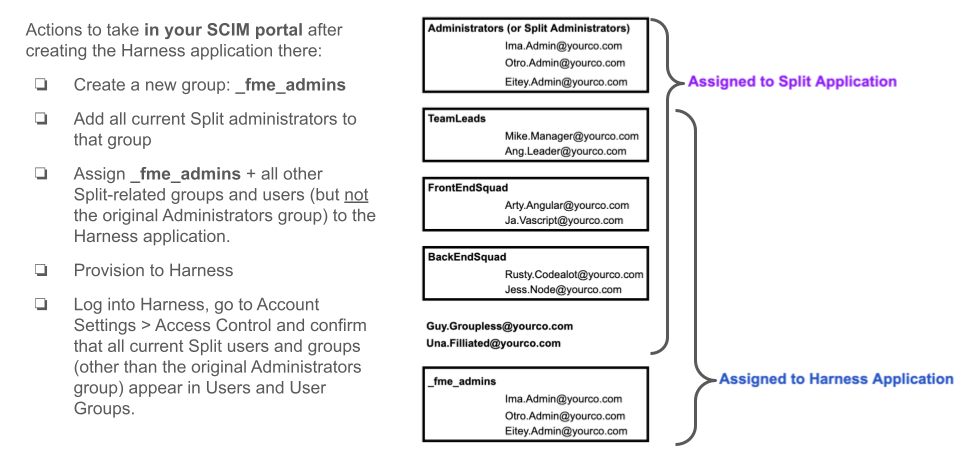

Create, Populate, and Push the All FME Admins Group

Your goal in configuring SCIM for Harness is to synchronize the same users and groups you have configured for Split but with one significant exception: Split Administrators.

• In Split, the group containing your Split Administrators is called Administrators
• When you are migrated to Harness, the group will be All FME Admins with an ID of _fme_admins

The Split migration process has already placed all of your current Split Administrators into All FME Admins on the Harness side and granted this User Group the appropriate RBAC permissions.

To enforce ongoing management of that group from the Okta side, you must perform the following steps:

1. Create a new group in Okta named after the ID of the All FME Admins group: _fme_admins
2. Add all of your current Split Administrators to the _fme_admins Okta group
3. Assign and push the _fme_admins Okta group to the Harness application

Assign Remaining Split-Assigned Groups to Harness

Once you have created the new _fme_admins group on the Okta side, the next step is to assign all current Split groups to Harness as well. Be very careful not to assign the "Administrators" group found in the Split application setup.  You do not want that group pushed to Harness by Okta.  Here are your steps:

1. Make a list of all groups currently assigned to the Split application in Okta
2. Remove the "Administrators" group from that list (it was replaced by the _fme_admins group)
3. Assign the remaining groups in your list to the Harness application in Okta
4. Push those groups to Harness

Confirm Your Users and Groups Sync and Become SCIM-Managed

The last task is to verify that all Split users and groups now appear on the Harness side as SCIM-managed. Once you have done this, please send an email to your Customer Success Manager or support@split.io with subject line, "SCIM Configured for [your account name]" so we know your account is ready for your migration day. If you run into any issues, please let us know and we'll be happy to help!

SCIM with Microsoft Entra ID

Create a Service Account, API Key and Token

• You will need a Harness API key and unexpired token that has all Users and User Groups permissions.
• We recommend using an API key associated with a service account
• Make sure the service account has all Users and User Groups permissions.
• Save the token for use in the next step below.

Follow Provisioning Steps in Harness Documentation

Start here: Enable Microsoft Entra ID provisioning for Harness (opens in a new tab)

Continue through to the steps up to, but not including the last line, where it says, "After enabling Microsoft Entra ID provisioning for Harness, you must assign permissions to user groups in Harness." The migration process has already assigned the appropriate permissions to the All FME Admins group. Please wait to explore assigning roles to other User Groups until after your account has been migrated.

Important! Disregard this sentence in the documentation

After enabling Microsoft Entra ID provisioning for Harness, you must assign permissions to user groups in Harness.

Create, Populate, and Push the All FME Admins Group

Your goal in configuring SCIM for Harness is to synchronize the same users and groups you have configured for Split but with one significant exception: Split Administrators.

• In Split, the group containing your Split Administrators is called Administrators
• In Entra ID the corresponding group is called Split_Administrators (or split_administrators)
• When you are migrated to Harness, the new group name will be All FME Admins initially on the Harness side, but you will want to create an Entra ID group named after the ID of that All FME Admins group: _fme_admins

The Split migration process will place all of your current Split Administrators in a Harness User Group called All FME Admins and grant this User Group the appropriate RBAC permissions for you. All you need to do is configure SCIM to maintain that list (instead of Split_Administrators) going forward.  Here are the steps:

1. Create a new group in Entra ID named after the ID of the All FME Admins group: _fme_admins
2. Add all of your current Split Administrators to the _fme_admins Entra ID group
3. Assign the _fme_admins Entra ID group to the Harness application

Assign Remaining Split-Assigned Groups to Harness

Once you have created the new _fme_admins group on the Entra ID side, the next step is to assign all current Split groups to Harness as well. Be very careful not to assign the "Administrators" group found in the Split application setup.  You do not want that group pushed to Harness by Entra ID.  Here are your steps:

1. Make a list of all groups currently assigned to the Split application in Entra ID
2. Remove the "Administrators" group from that list (it was replaced by the _fme_admins group)
3. Assign the remaining groups in your list to the Harness application in Entra ID
4. Push those groups to Harness

Confirm Your Users and Groups Sync and Become SCIM-Managed

The last task is to verify that all Split users and groups now appear on the Harness side as SCIM-managed. Once you have done this, please send an email to your Customer Success Manager or support@split.io with subject line, "SCIM Configured for [your account name]" so we know your account is ready for your migration day. If you run into any issues, please let us know and we'll be happy to help!

SSO or SCIM With Other

Need help configuring SSO or SCIM for an IdP not listed here? Please drop us a line at support@split.io.
